DW23 -
Thank you for this outstanding Partnership

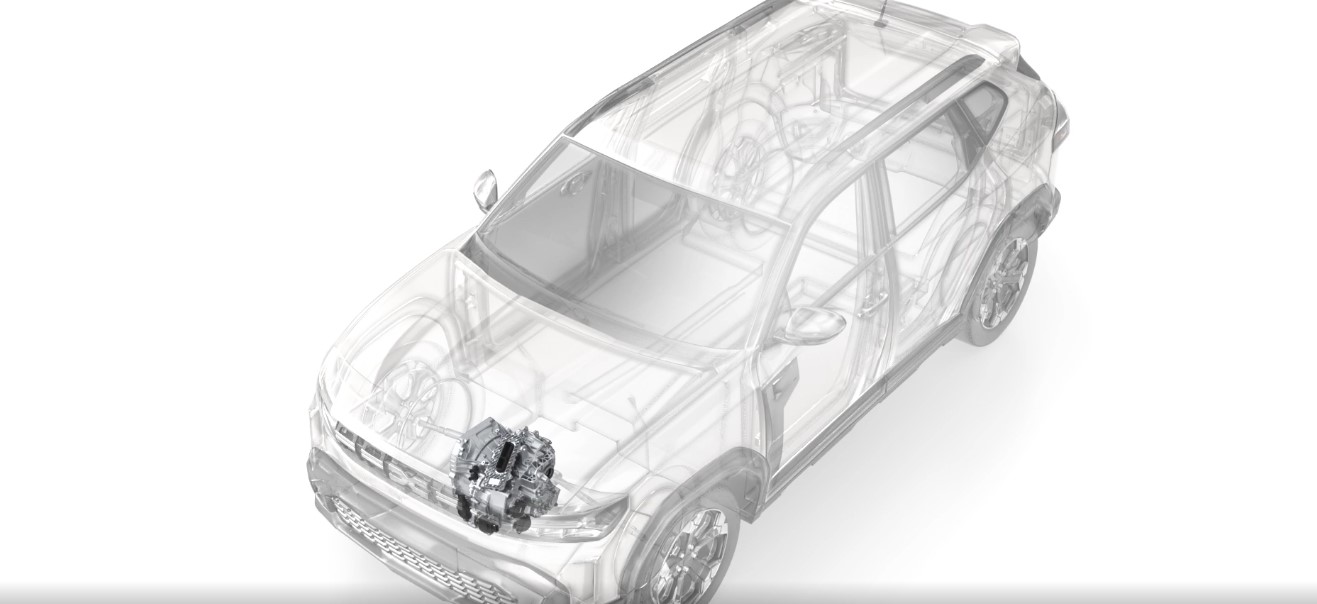

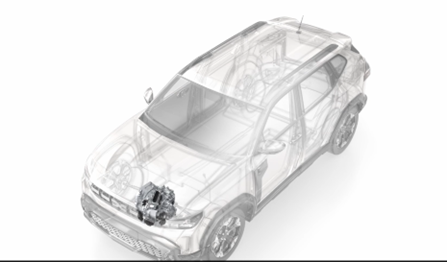

Exploring the DW23:
A Testament to Innovation and Partnership
This innovative dual-clutch transmission has been a cornerstone of our successful partnership over the years, delivering exceptional performance and reliability. We are proud to take a closer look at the outstanding DW23 product, its innovative design features, and the significant impact of our collaboration over the years.
A Proven Partnership
Since 2010, over 3.5 million transmissions have been delivered, supporting a variety of projects and torque ranges. This long-standing collaboration underscores a commitment to quality and innovation.
DW23 Double Clutch Wet – 250 Newton Meters
The DW23 Double Clutch Wet transmission provieds a robust torque capacity of 250 Newton meters.
Innovative Gear Set Design
The 6-speed gear set of DW23 consists of four mechanical gears and two 'virtual' gears. These virtual gears, the 1st and 6th gear, are formed via a bridge, contributing to an extremely compact and lightweight design.
Scalability and Interchangeability
DW23's scalability to HDT 48V and High Voltage hybrid transmissions ensures a seamless interchangeability within the CMF-B platform, accommodating future HDT, and DHD options.
Comprehensive Product Portfolio
The complete product portfolio, with torque capacities of 250 to 400 Newton Meters, caters to segments ranging from B to LCV. These products were trusted across Europe, Asia, and South America.
Our Partnership
The DW23 project and the partnership behind it are a testament to shared commitment to excellence and innovation.
Interchangeability:
How the existing CMF-B compartment can accommodate Dual Clutch, 48V, and High Voltage Hybrid Transmissions
Mild Hybrid
HDT Eco 48V:
- Cost-efficient hybrid solution for applications with minimal electric driving needs
- Primarily designed for functions like parking, maneuvering, and stop-and-go
- Provides an economical and practical solution for selected electric driving capabilities
HEV & PHEV
HDT Eco with 50 or 100-kW e-motor:
- High-voltage HDT Eco with 50 or 100-kW e-motor for applications prioritizing electric driving functions and efficiency.
- Demonstrates significant benefits in WLTP and real-world driving conditions with high dynamic loads.
- Utilizes six gears to maintain the full traction force of the combustion engine.
- P2.5 design and compact gearset allow for scalable electrification in a small and lightweight package.
- Suitable for both HEV and PHEV applications.
PHEV

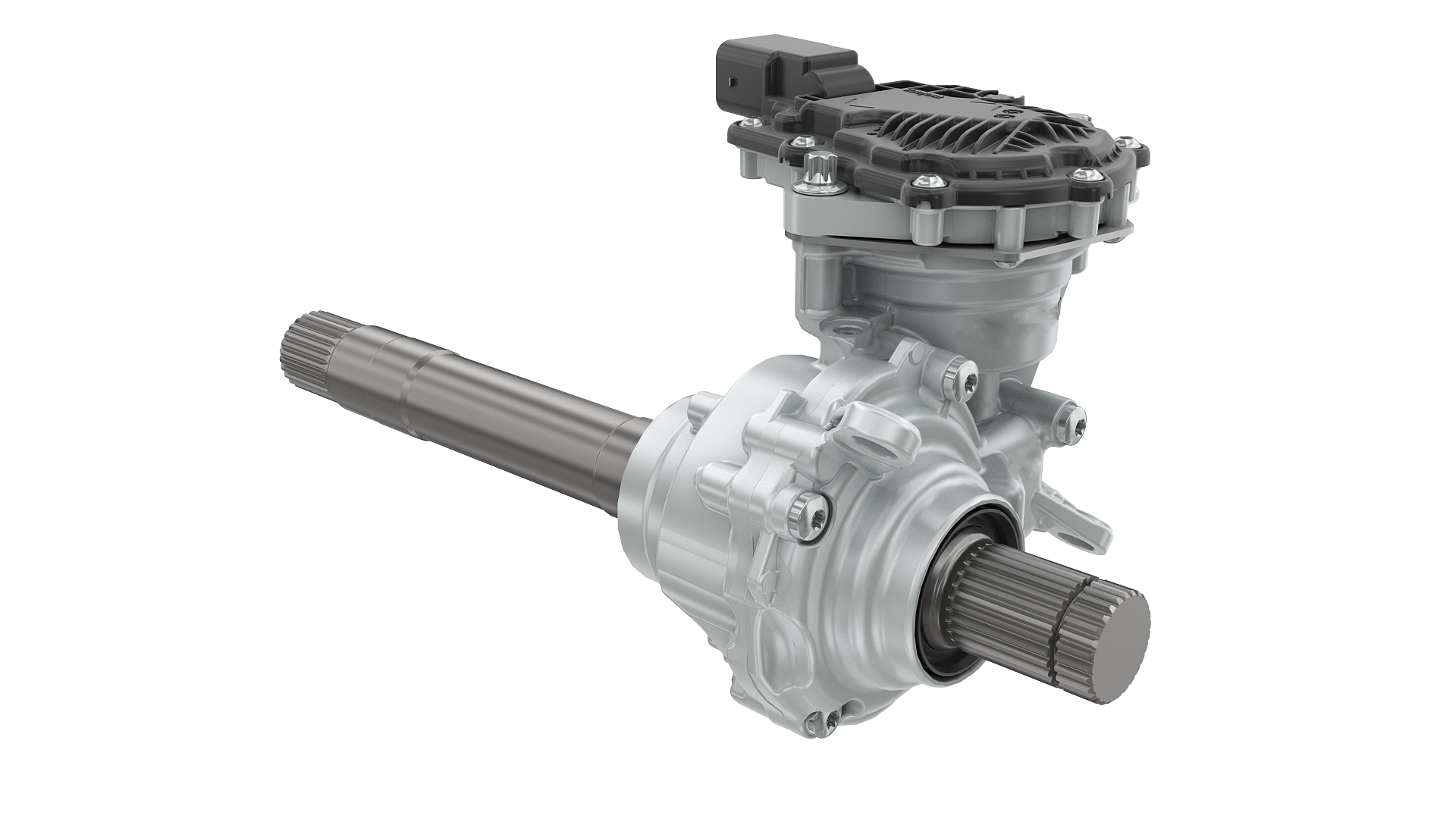

DHD Eco:
- DHD Eco is a hybrid drive with a powerful e-motor as the main source of propulsion.
- It does not require virtual 1st and 6th gears, and neither R.
- Starts up electrically like a Battery Electric Vehicle (BEV).
- Designed to provide a driving experience similar to a BEV and is primarily meant for Plug-in Hybrid Electric Vehicle applications (PHEV) with a focus on electric driving.
PHEV & Range Extender Concept

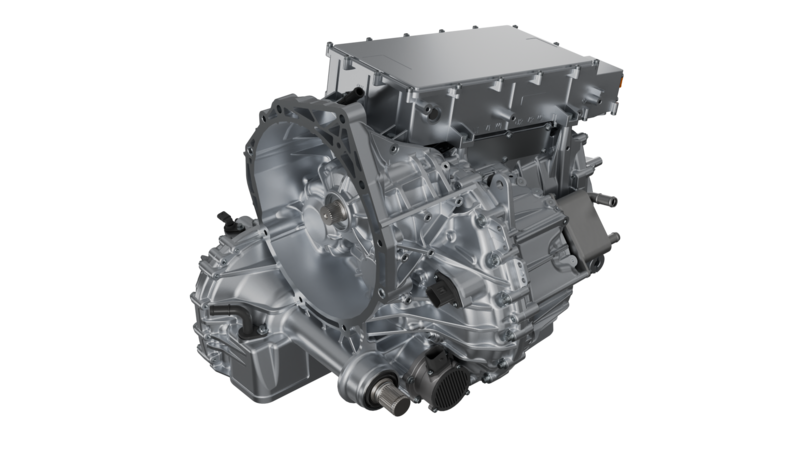

DHD Duo:
- Magna's DHD Duo enhances fleet efficiency and reduces CO₂ emissions with improved acceleration, battery recovery, recharging, and all-electric driving.
- Serial-ready Multi-Mode Hybrid Drive with a range extender, using existing ICE platforms efficiently.
- Flexible two E-motor setup for HEV and PHEV applications.
- Modular design, using proven components like motors and inverters for cost-effective and efficient operation.
Download the Deep Dive now!
Technical Paper Eco Family:
Magna's scalable transmission family for DCT, 48V hybrid, high-voltage HEV and PHEV applications.
Take a closer look at our technical paper to discover more about the highly flexible Eco and Duo families, which provide solutions for all applications across various vehicle segments and cater to specific market requirements in different regions.
- To receive the content, enter your contact information into the following form.
- A download link will be sent to the email address you provide to download the content. These materials are available in English.
Magna's HDT Experience:
Available on the “local for local” principle with locations in China, Europe and North America.
Magna's Eco Family transmissions represents the natural evolution of our conventional experience technologies. Operating on the "local for local" principle, we establish our presence where our customers are. With locations in China, Europe, and North America, we offer local engineering and manufacturing support to tailor solutions to your specific needs.
- The HDT Eco is available in a 48V and three high-voltage versions
- HDT in production since 2022
- Partner to renowned global OEMs
- Dedicated Hybrid Drive (HV) launching in 2025
