>1,000% material elongation
200% to >1000% material elongation enables the production of highly complex and large components.
Unlock Design Freedom with Super Plastic Forming (SPF)
SPF enables complex, lightweight aluminum parts with high surface quality and reduced tooling costs.
What is Super Plastic Forming and how does it enable complex aluminum designs?

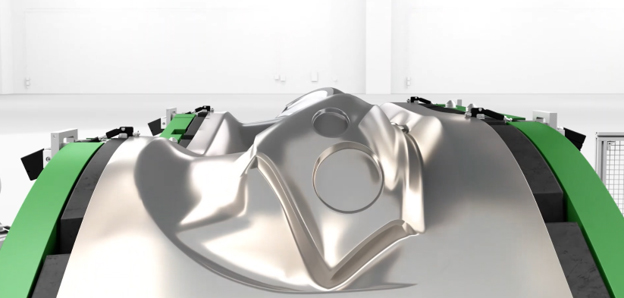

Super Plastic Forming is an advanced aluminum forming technology that allows the production of complex, high-precision components by leveraging the super plastic properties of aluminum alloys.
What are the key benefits of Super Plastic Forming?
- Design Flexibility:
Create complex geometries, sharp radii, and detailed features without compromise. - High-Quality Surface Finish:
Achieve Class A surfaces with excellent detail and fine finishes. - Deep Drawing Capabilities:
Form deep (>500 mm), precise components in a single process. - Cost Efficiency:
Lower tooling costs and reduced part assembly through part integration. - No Spring Back:
Ensures dimensional accuracy and consistency in every part. - Lightweight Components:
Reduce weight without sacrificing strength, ideal for automotive and aerospace applications.
Integrating More Into Less

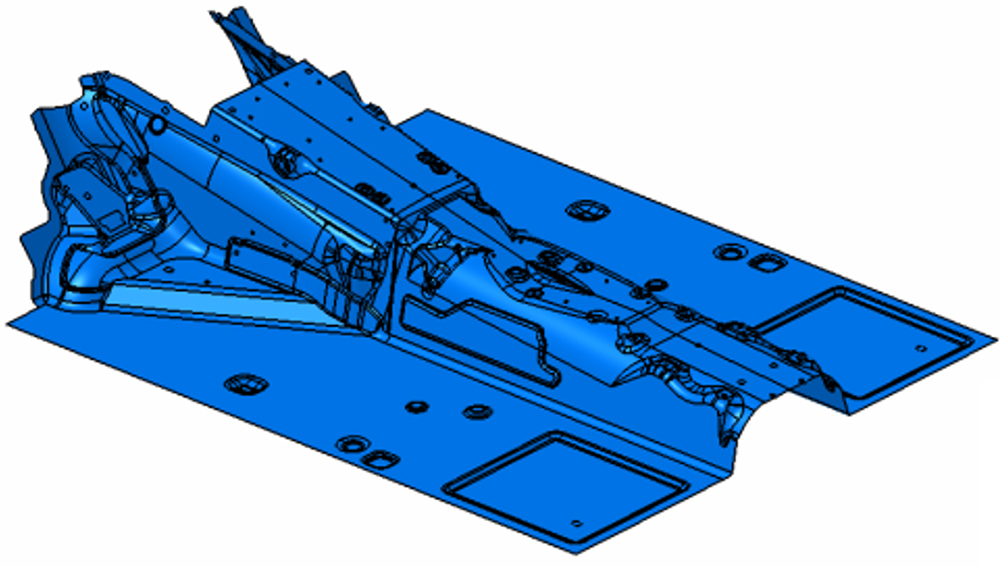

Magna’s Superplastic Forming (SPF) technology enables complex lightweight structures to be formed as a single integrated component, replacing multiple conventionally stamped and assembled parts.
Integrated SPF solutions can provide OEMs with significant benefits across the full product lifecycle:
- Reduced part count through consolidation of multiple structural components
- Lower tooling investment by eliminating multiple stamping dies, fixtures and gauges
- Reduced assembly and joining costs including welding, riveting, bonding and fastening
- Lower capital requirements through simplified manufacturing and assembly processes
- Enhanced quality and repeatability with fewer interfaces and potential failure points
Through early engineering collaboration, Magna SPF technology can help OEMs design cost, weight and manufacturing complexity out of the vehicle before production begins.
Key facts about Super Plastic Forming
Design flexibility
Create specialized, complex geometries, sharp radii, and detailed features without compromise.
0% spring back
Ensures dimensional accuracy and consistency in every part.
Why OEMs choose Magna for Super Plastic Forming?
Since 2007, Magna’s Autolaunch division in Carlow, Ireland has pioneered SPF technology, continuously expanding its capabilities through plant expansions and process innovations. Our proven, repeatable process ensures consistent quality for high-end components, giving our partners a competitive edge.
- Established Track Record:
Proven manufacturing and process expertise since 2007. - Technical Leadership:
Expert engineers and dedicated facilities specializing in super plastic forming. - Cost and Time Savings:
Lower tooling costs and faster turnaround for complex parts. - Niche Architecture Solutions:
SPF enables the development of specialized, tailored solutions. - Innovation Partner:
Collaborate with us to realize your most ambitious design ideas.
Where can Super Plastic Forming be used?
Automotive
Body panels, side panels, and structural components with high styling demands.
Aerospace
Complex, lightweight structural parts requiring precision and durability.
High-End Consumer Products
Custom, intricate panels and components that demand superior surface quality and design flexibility.
Specialized Manufacturing
Deep-draw, large, and complex workpieces for specialized manufacturing.
"Our Super Plastic Forming (SPF) technology allows us to produce lightweight, highly complex aluminum components with exceptional precision and surface quality. It gives our customers greater design freedom, reduced assembly complexity, and the ability to bring innovative vehicle concepts to life in ways traditional stamping processes cannot."
Jason Sultana
General Manager, Magna Autolaunch Ireland
FAQs – About Super Plastic Forming
What is Super Plastic Forming (SPF) in aluminum manufacturing?
Super Plastic Forming (SPF) is a process in which aluminum alloys are stretched at elevated temperatures to create complex shapes with high precision.
How much can aluminum stretch during SPF?
Depending on the alloy and process conditions, aluminum can stretch from at least 200% to more than 1000%.
What are the main advantages of SPF for OEMs?
SPF offers design flexibility, high surface quality, reduced tooling costs, and the ability to integrate multiple parts into a single component.
In which industries are SPF typically used?
SPF is widely used in automotive, aerospace, and high-end product manufacturing where complex geometries and lightweight design are required.
Is SPF suitable for high-volume production?
SPF is primarily designed for high-complexity applications where tooling cost and design flexibility are key factors.
Have a complex component in mind? Let's talk.
Unlock new possibilities in component design and manufacturing with Super Plastic Forming. Contact us today to learn how SPF can elevate your next project.
