Control Modules
Driving the Transformation Toward Electrification
Magna is one of the preferred partners for all electrified systems. With our extensive experience and innovative technologies, we are driving the transformation towards electrification in the automotive industry. Magna’s electronic products include electronic inverters, ECUs, e-pumps and power closures. Our complete system expertise is based on a unique combination of engineering and development know-how to drive as efficiently and economically as possible. At Magna, we are committed to environmental protection, vehicle efficiency and new mobility concepts to increase the quality of life around the globe.
Chassis Control Modules
Magna Safety and Control
Magna’s Chassis Controller and Battery Management Systems provide special functions like active damping and suspension control as well as monitor and control battery packs for safe operation in response to vehicle conditions and thermal requirements.
Intelligent Chassis Control Module (ICCM)
Magna's Intelligent Chassis Control Modules (ICCM) perform various suspension and chassis related functions with full ASIL D functional safety capability. System integration include mounting outside the passenger compartment usually to a rigid body.
Battery Management Unit
Magna Powertrain offers a highly-integrated eDrive system, which contains gearbox, emotor, inverter and a torque vectoring option, additionally a decoupling and park lock option can be applied.
It provides up to 160kW for 30sec and up to 4,000Nm at the wheels. The eDrive system fulfills the ASil "D" safety integrity level. It can be applied to both hybrid and battery electric vehicles.
Cell Sensing Board (CSB)
The CSB measures four temperatures and up to 12 Lithium Ion or Polymer battery cells. The data can be polled by another module in the system (usually a Battery Management Unit). In addition, the CSB has hardware protection against over- and under-voltage as well as over temperature.
Glow Plug Control Modules
Flexible Control with Magna
Magna's external control unit for glow time regulation is a flexible solution able to either controls glow plugs or control additional functions like auxiliary heating, water level sensors or filter heating.
Glow Plug Control Unit (GPCU)
Magna offers an external control unit for glow time regulation. This unit either controls glow plugs only or integrates control of additional functions like auxiliary heating, water level sensor or filter heating in one unit. This product is designed for three, four and five cylinder engines.
Main Features and Technical Advantages
Magna’s glow plugs have many advantages, including having a customized ASIC or control unit design. Compatible with European On-Board Diagnostic (EOBD), these are also EU5 / EU6 compliant. Various communication protocols are possible, and the glow plugs have central or single thermal overload protection while ensuring a compact design for optimized vehicle packaging.
Powertrain Control Modules
Controlling the Torque
If it’s controlling the torque at the rear wheels of the vehicle, balancing and shifting when needed; or reducing power absorption, our technologies result in better efficiency and less environmental impact.
Transfer Case Control Module (TCCM)
The TCCM provides complete torque control from rear-to-front and front-to-rear wheels. It is mounted with the transfer case, able to perform diagnostics and provide status and compensate for ambient temperature variations to improve quality and reliability.

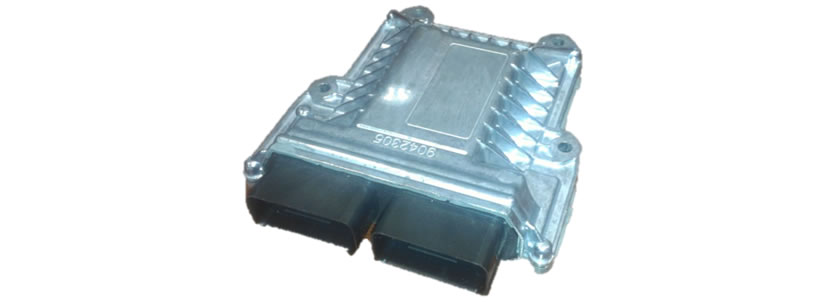

Rear Driveline Control Module (RDCM)
Magna's RDCM controls the torque at the rear wheels of the vehicle balancing it left to right, and shifting torque when needed.
Powertrain Control Module (PCM)
Functions as the master controller in hybrid and electric vehicles. It is responsible for reading driver input and determining the required wheel torque, while also monitoring safety systems and providing thermal and energy management.
Brushless DC Motor Controller
Magna’s BLDC motor control platform is designed to efficiently control motors for air, oil, and water pumps in the power range of 80W to 600W. This modular platform includes a complete selection of hardware options and motor control algorithms to fit almost any automotive application.
Mechatronic Control Modules
The Brains Behind Mechatronics
Electronics enable advanced technologies that open up new ways of interacting with the vehicle. As a complete system supplier, our in-house electronics design and manufacturing capability allow us to seamlessly integrate new features and solutions into vehicles.
Gesture Recognition
Sensors and integrated ECUs allow for new ways of interacting with the vehicle. Simply waving a hand or foot near a designated area on the vehicle can open or close any door.
